Engines and gearbox

• Engine power: 84 kW (114 CV)
• Engine version: EURO VI
• Gearbox: Rear wheel drive | 6-speed manual transmission ECO Gear

Dimensions and Weights (mm/Kg)

• Length: 5.932mm
• Width: 2.020 mm
• Height: 2.910 mm
• Interior height: 1.900 mm
• Wheelbase: 3.665 mm
• Permissible total weight: 3.500 kg
• Fuel type and capacity: Diesel - 93 L tank

General

• Thermal insulation
• Exit lights
• USB Socket 5V
• Rear view camera
• Mercedes-Benz Emergency Call System

Exterior

• Electrically foldable and heated side mirrors
• Electric and heated side mirrors
• Front fog lights
• 235/65 R16 C tyres
• Steel wheels with special colour 6,5J x 16

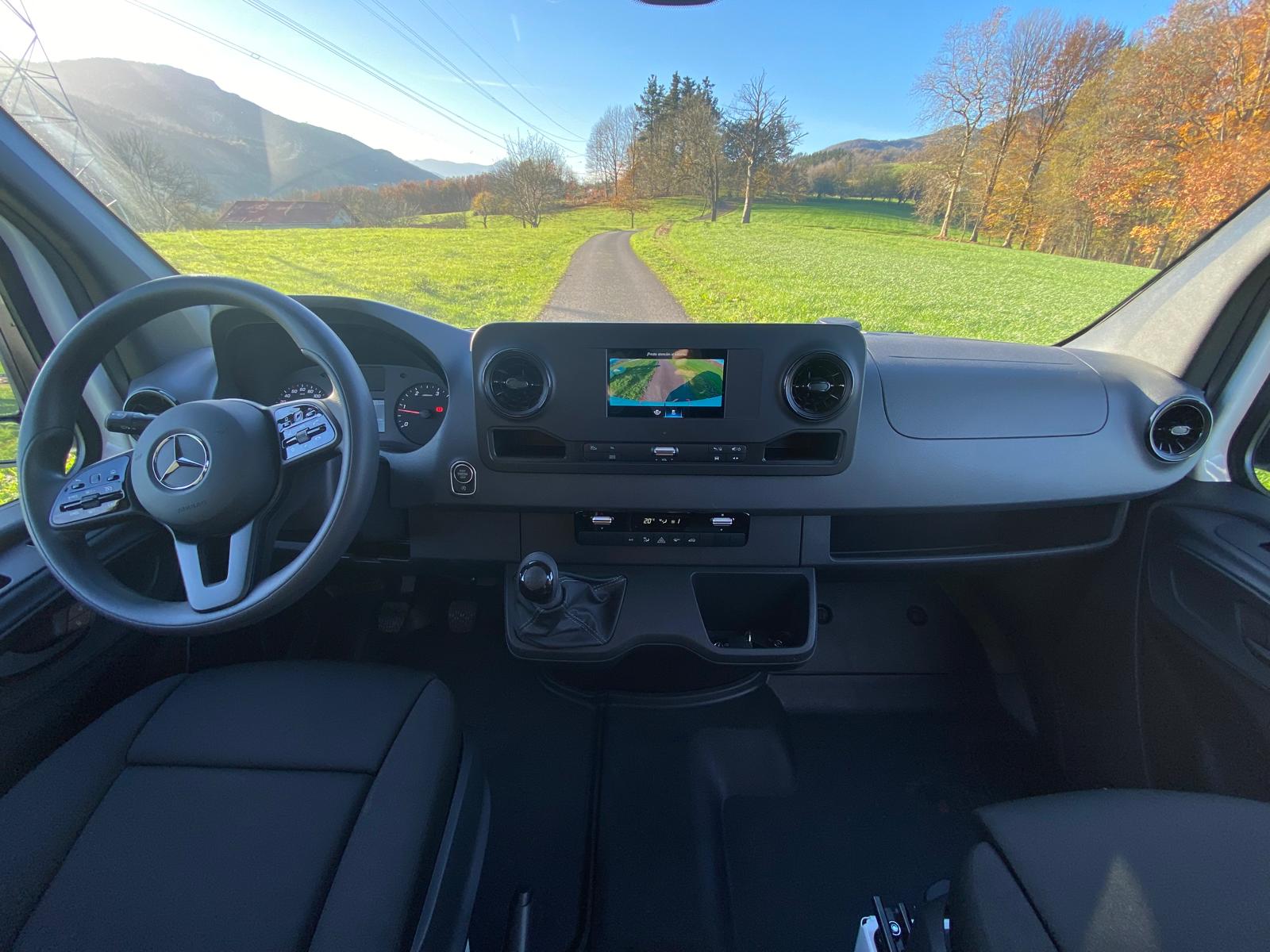

Cabin

• MBUX Multimedia System with high resolution 7" screen
• Control unit on the comfort roof
• TEMPOMAT - Cruise control
• Airbag driver
• Paquete de carga tablero de instrumentos
• Cupholder on the front
• Folding cover for storage compartment
• Black Maturin upholstery on seats
• Charging package on the dashboard
• Swivel passenger´s seat

General

• Travel people | 4
• Sleeping people | 4
• High quality temperature and noise insulation
• Phenolic wood covered with high-traffic vinyl flooring, concrete cold grey design
• Poplar walls upholstered in grey
• Walnut design HPL wood furnitures with raw aluminium details with NORANTZ’s unique aesthetic
• High quality storage drawers and cabinets with security and soft-closing
• Dimmable LED lines all over the room

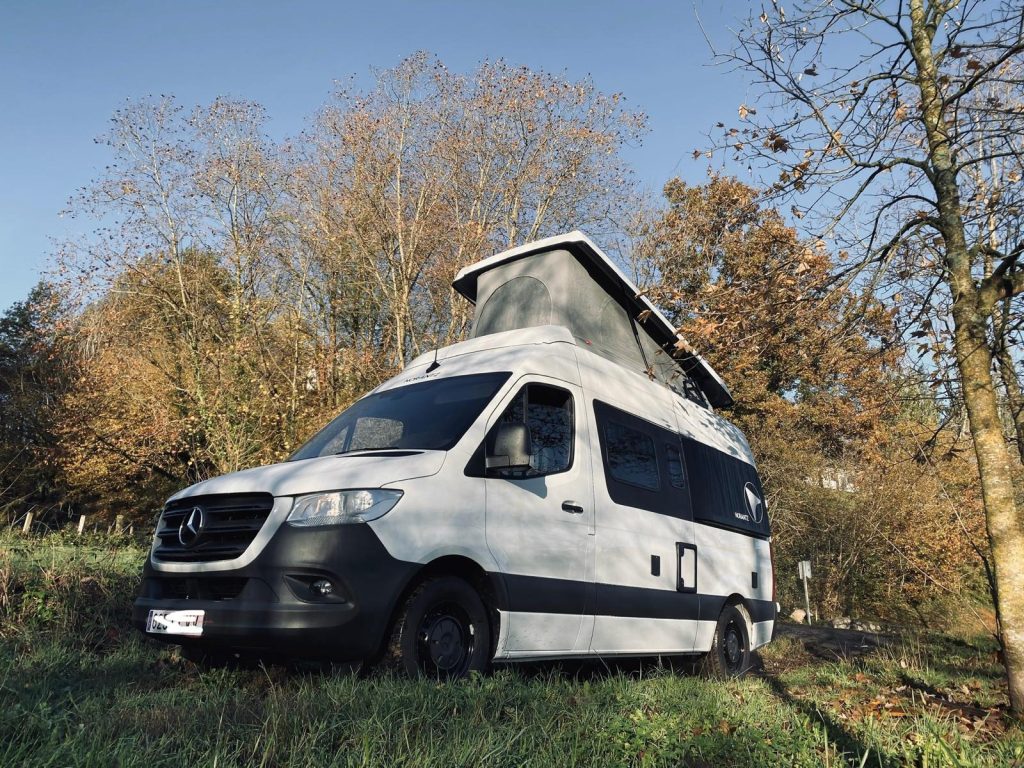

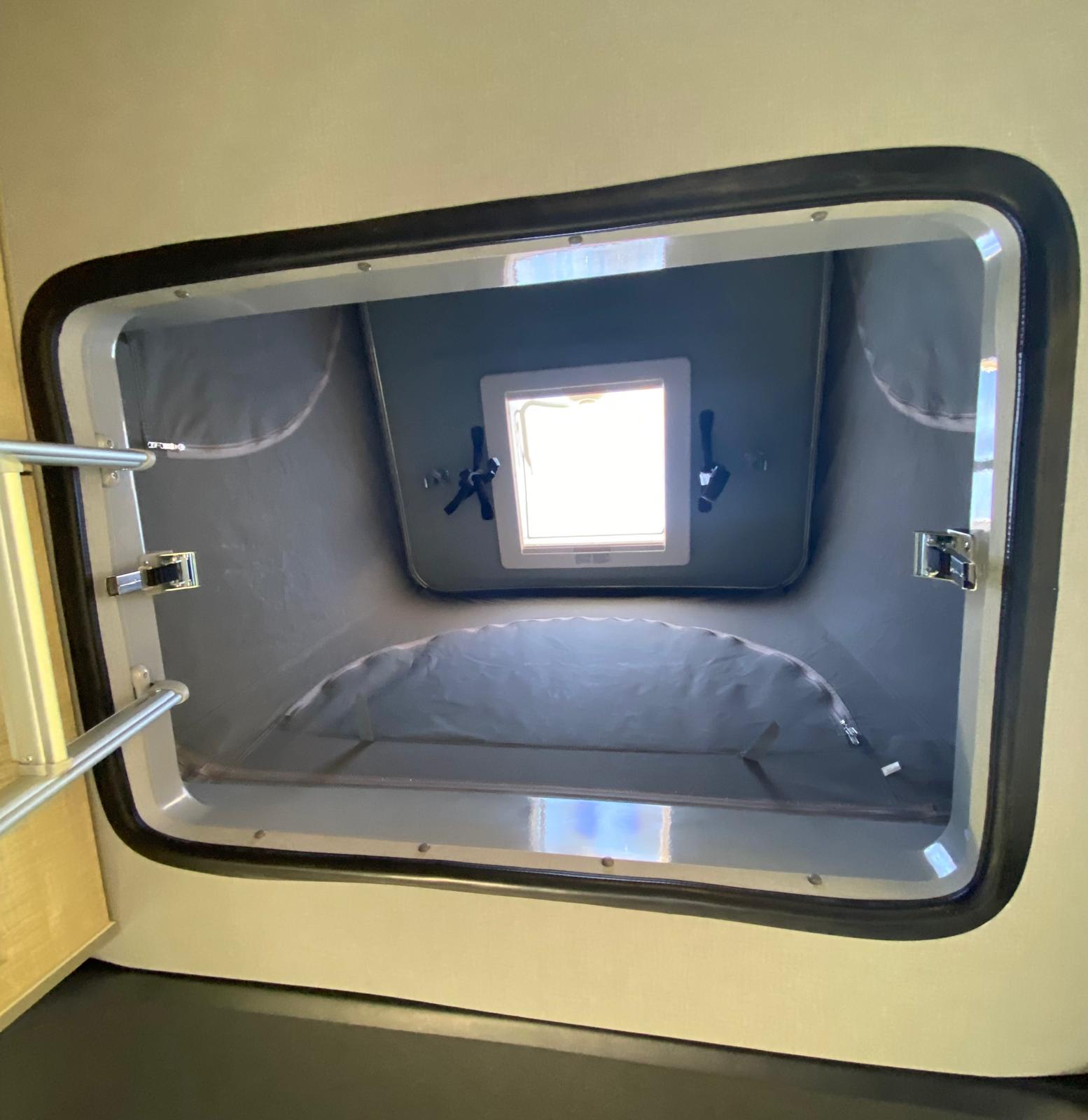

• SCA 252 Roof | Pop-up
• Longitudinal bed on the roof | 2000 x 1200 mm

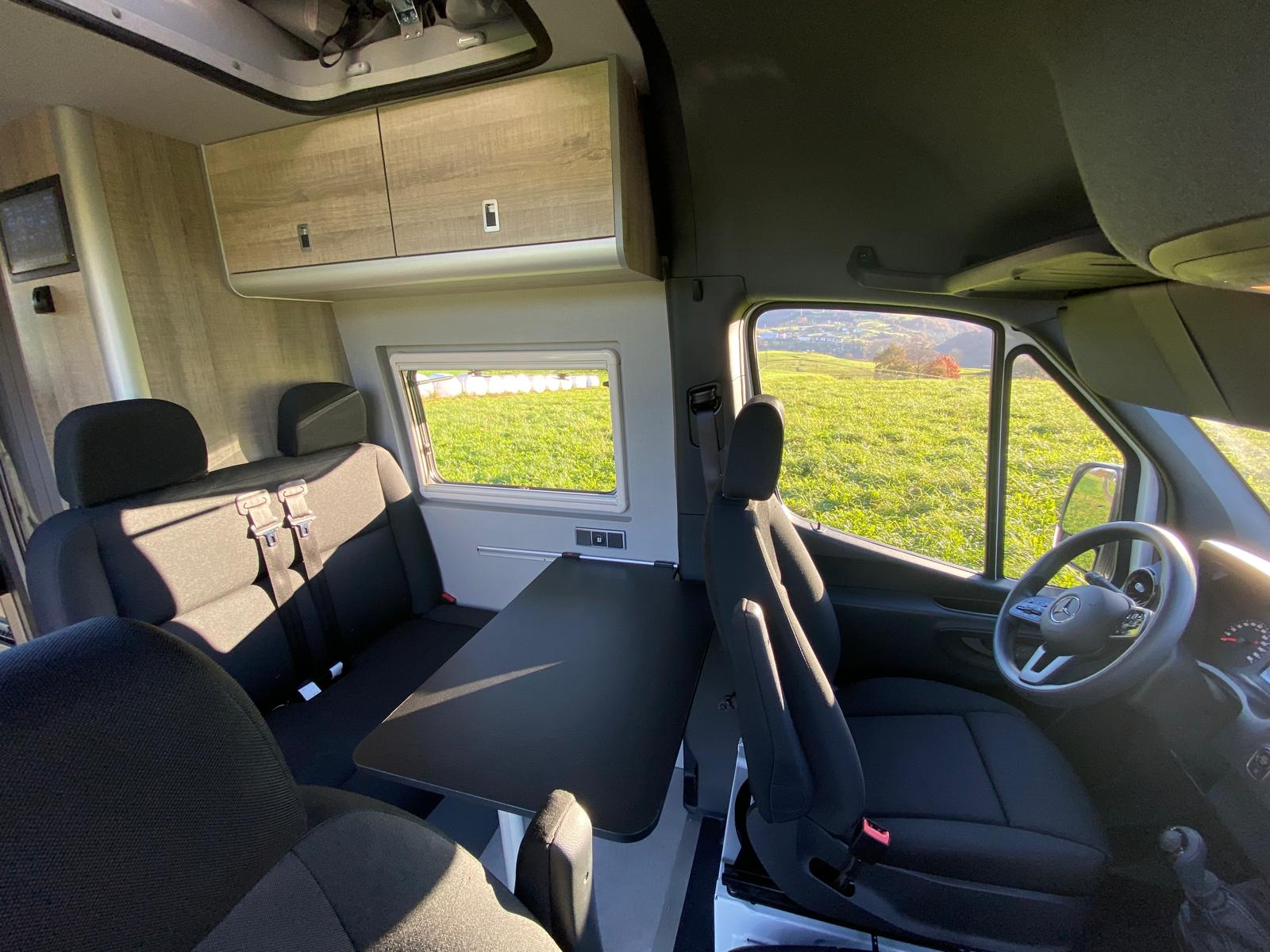

Hall

• Double seat bench with integrated seatbelts, isofix-attached points and upholstery as cabin seats
• Pull-out table on dining-room

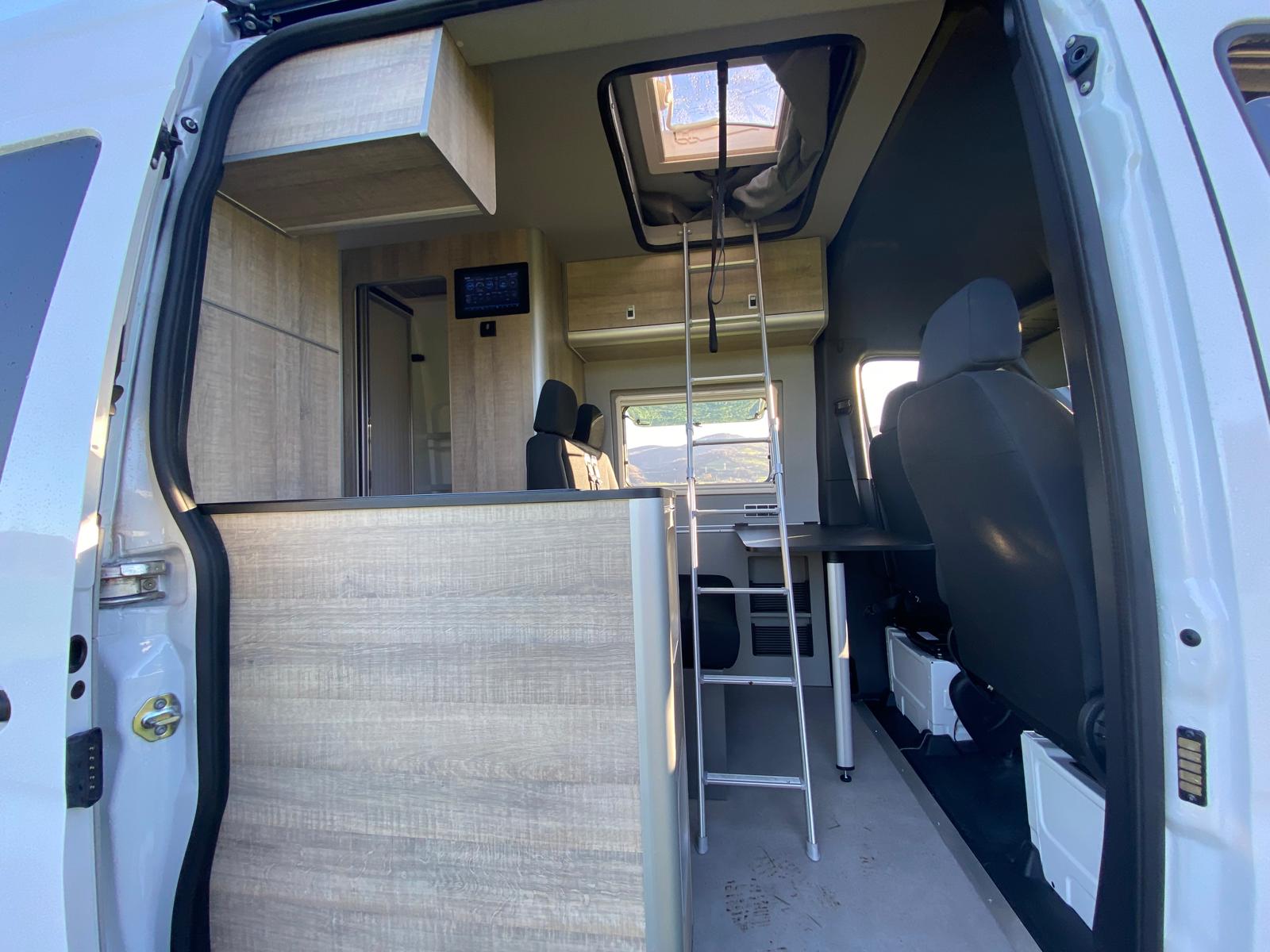

• Removable ladder for upper bed

Kitchen

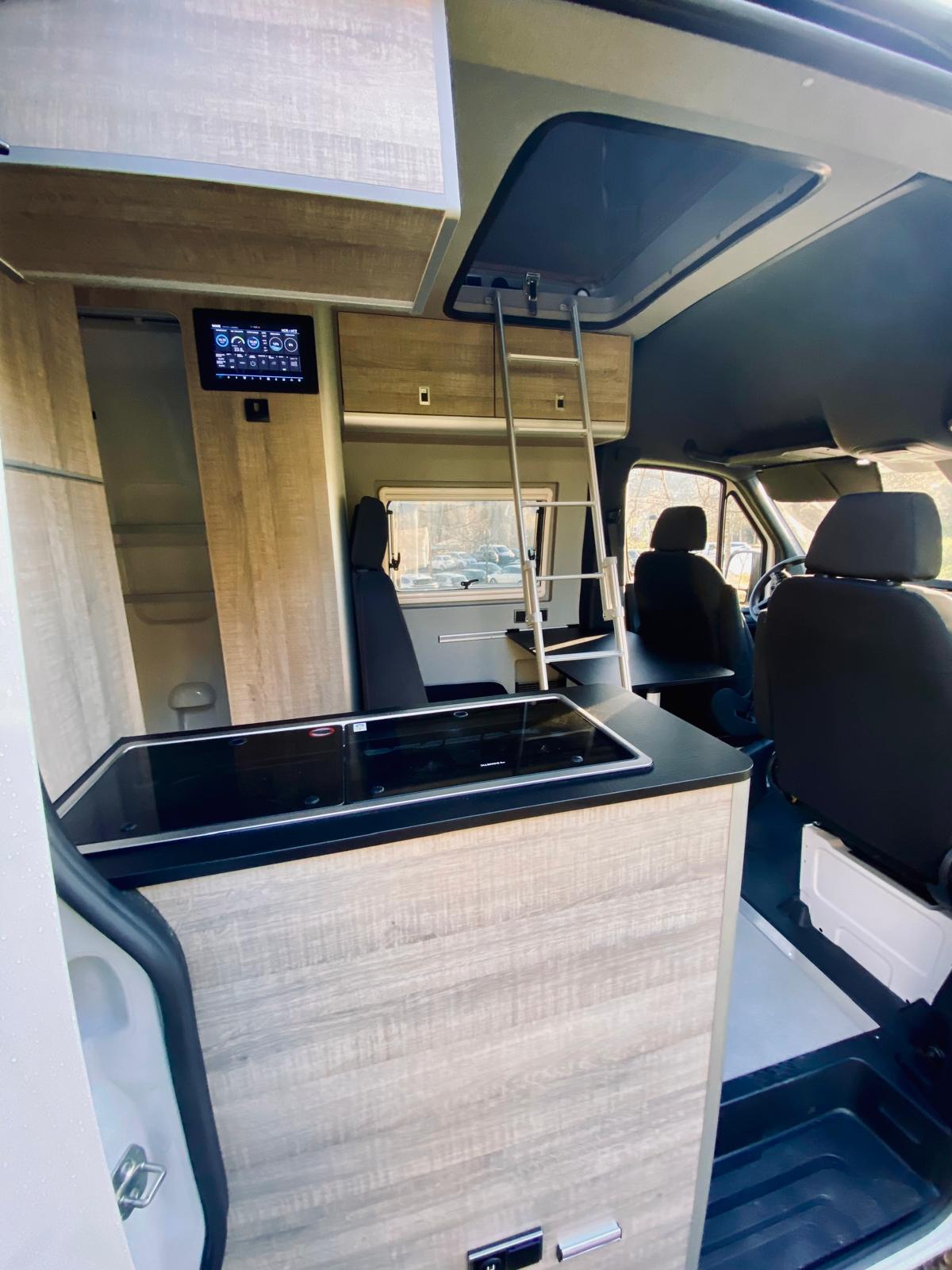

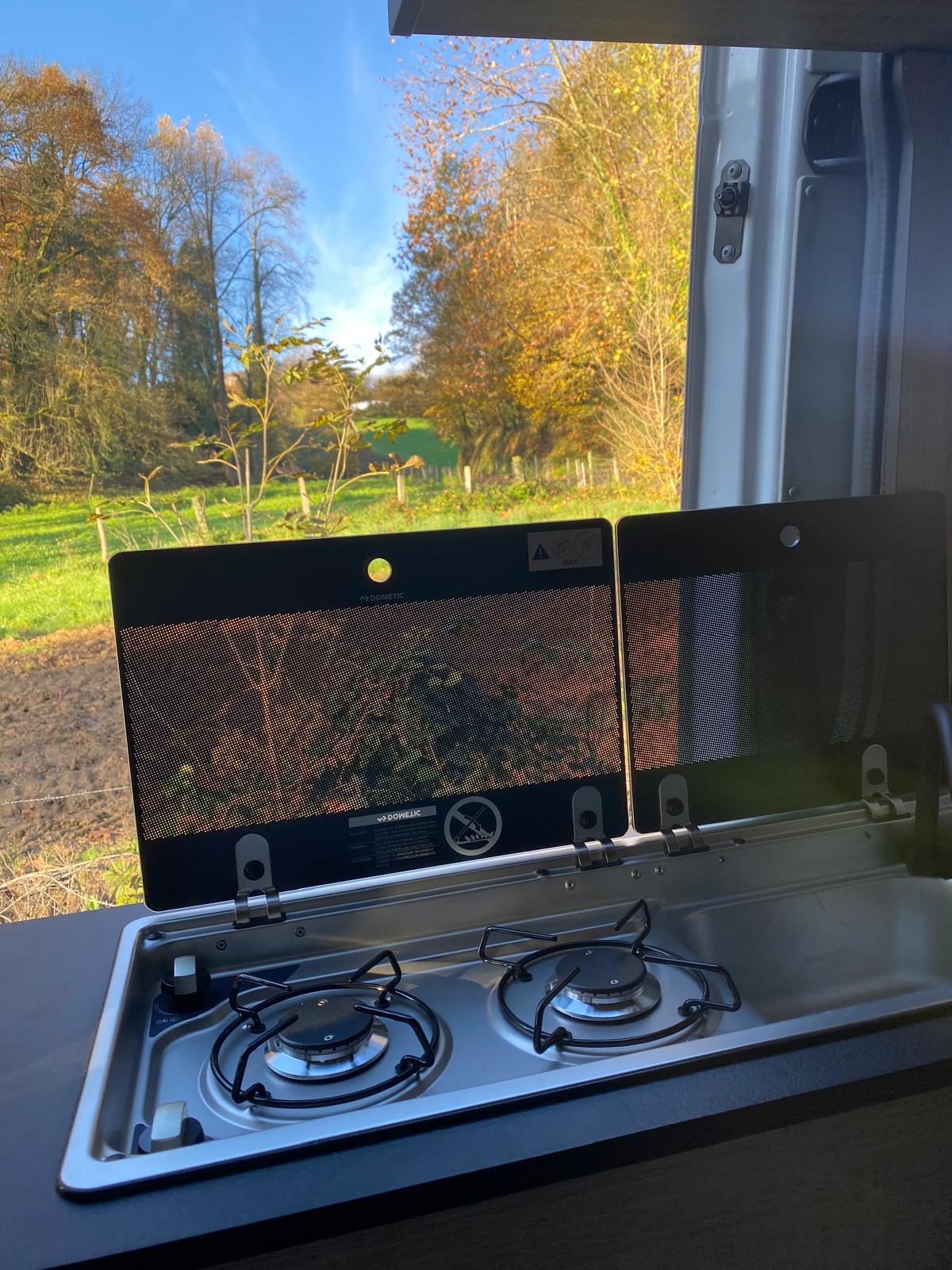

• Dometic MO9722R AM kitchen (2 burner gas stove with piezo ignition, sink and glass cover
• Closed cabinet with roller shutter

Wc

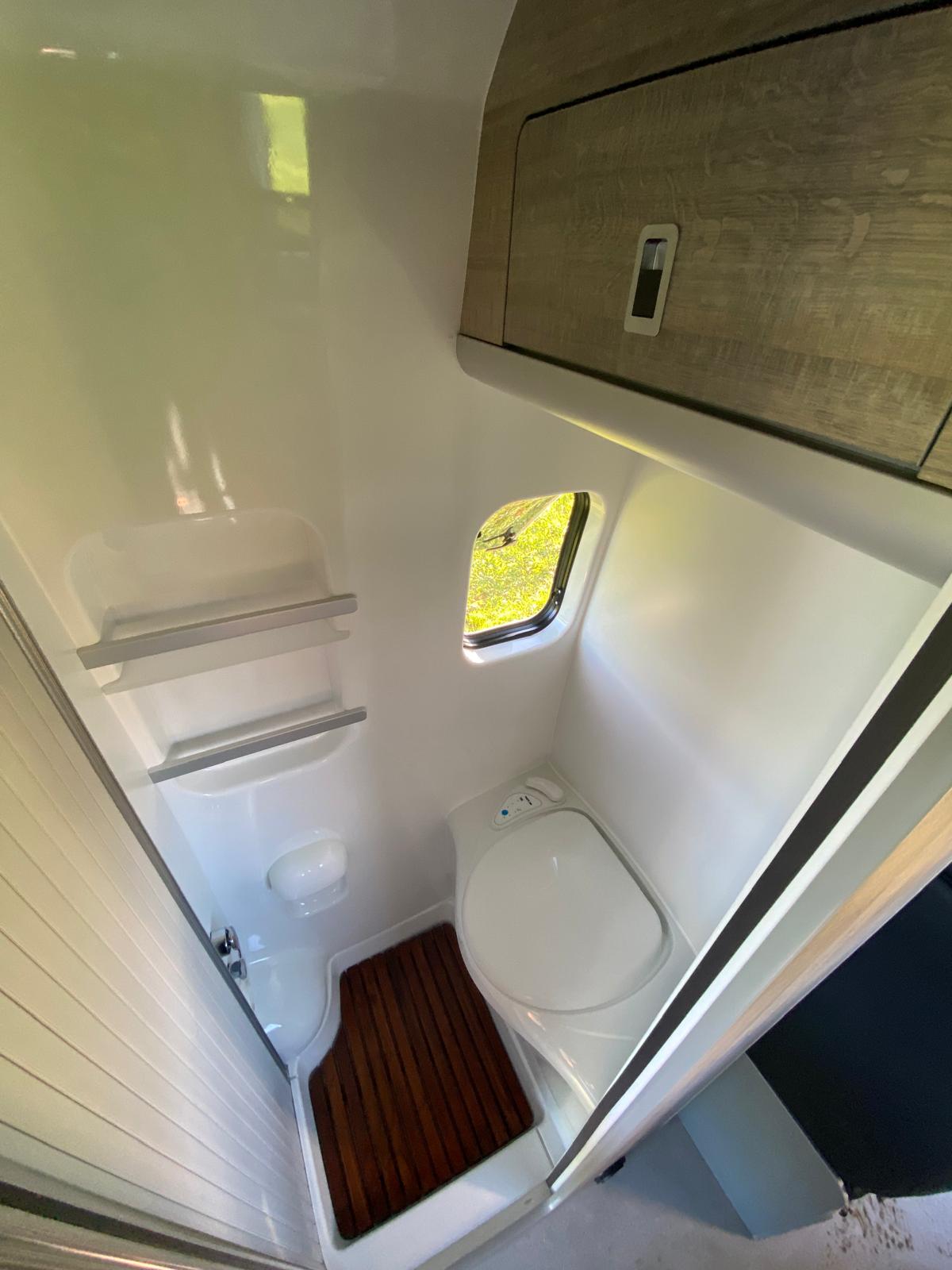

• Enclosed shower with sliding shutter door, closed wall cabinet and window with privacy film
• Thetford C402X chemical toilette inside WC space

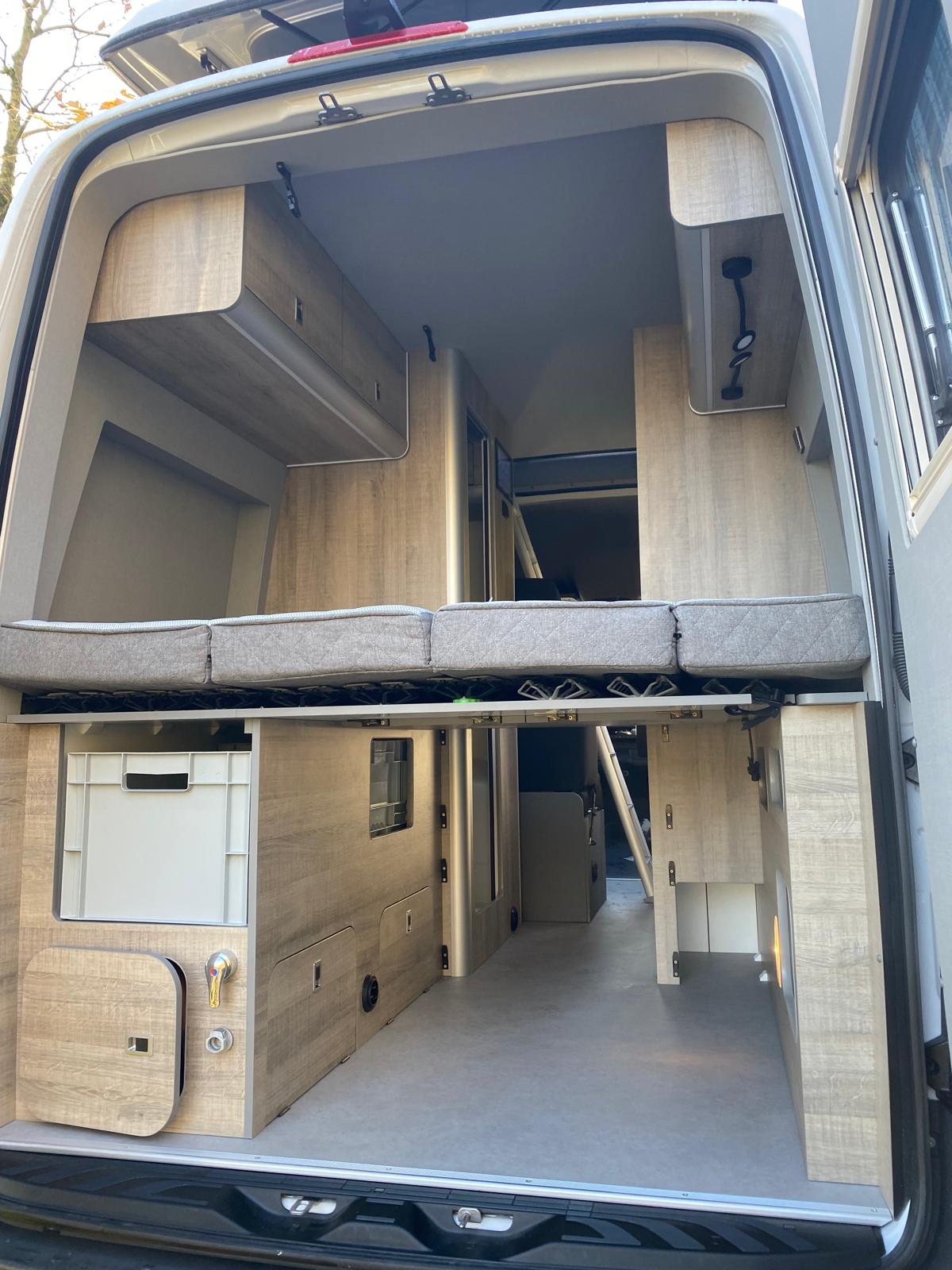

Sleeping area

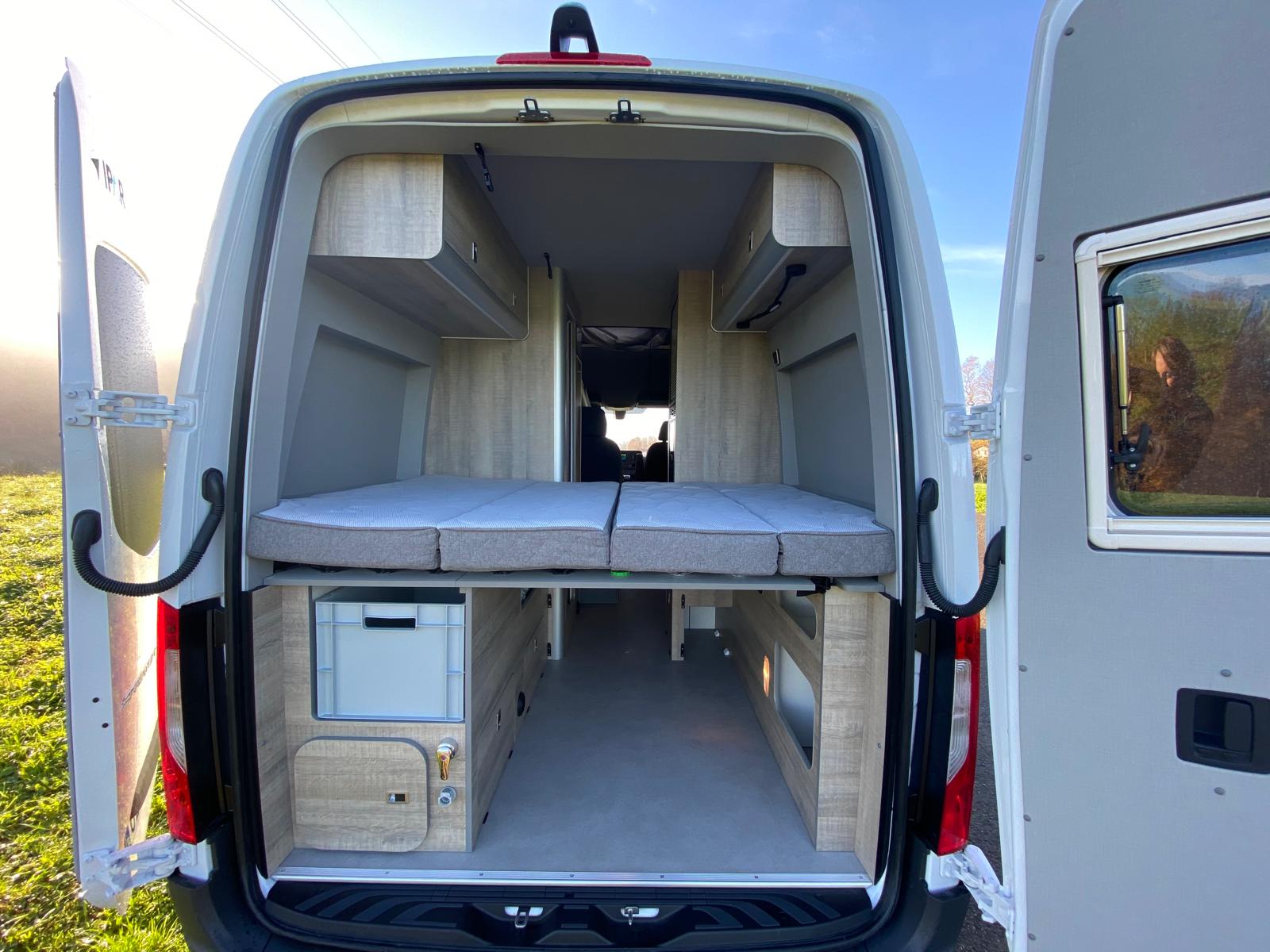

• Fold-down transverse bed on the back with ergonomic viscoelastic mattress and lower ventilation system, with pop-outs 1950 x 1350 mm (without 1730 x 1350 mm)
• Roof storage compartments on both sides of the bed, incl. 2 reading flex lights with USB port

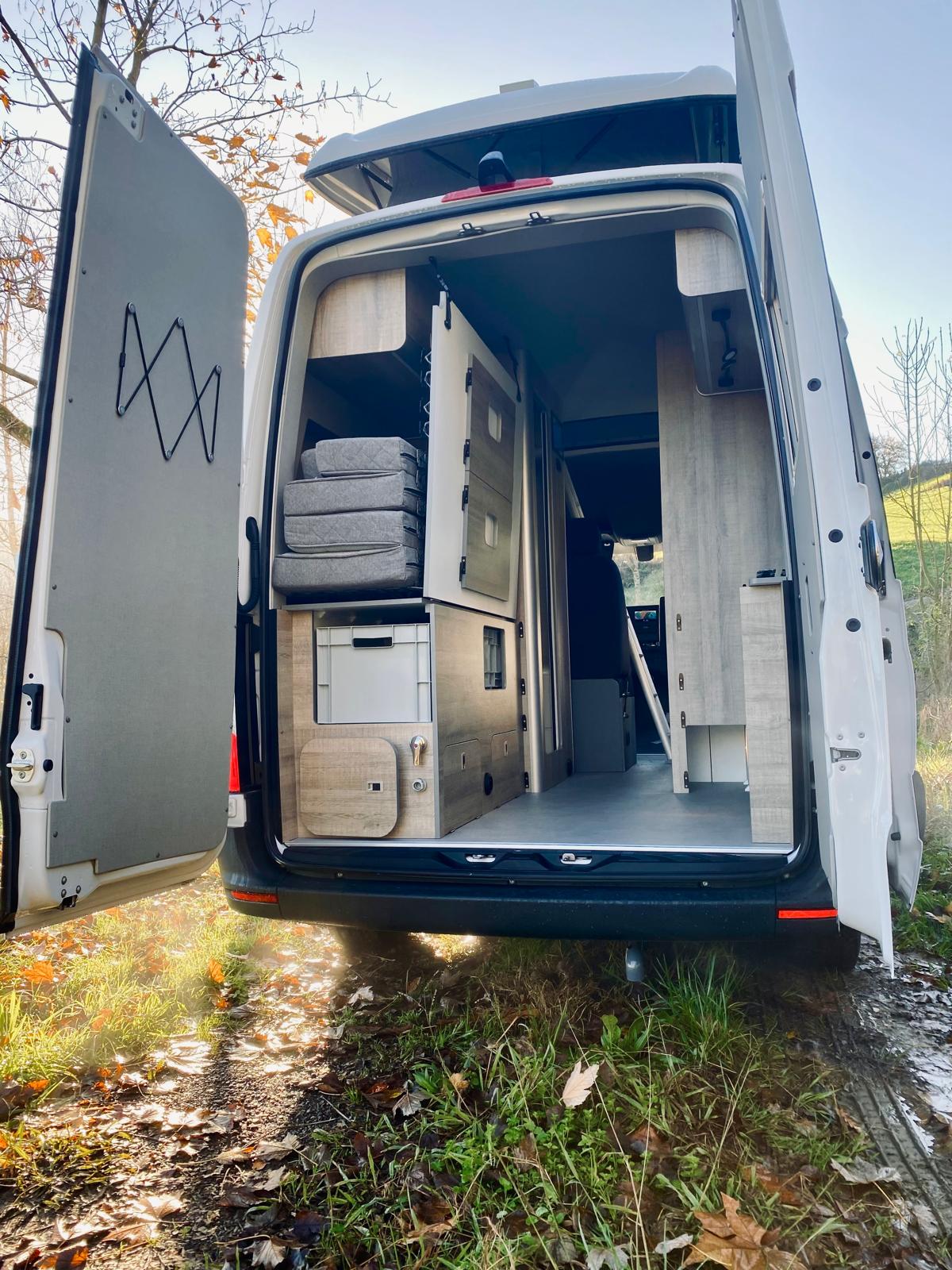

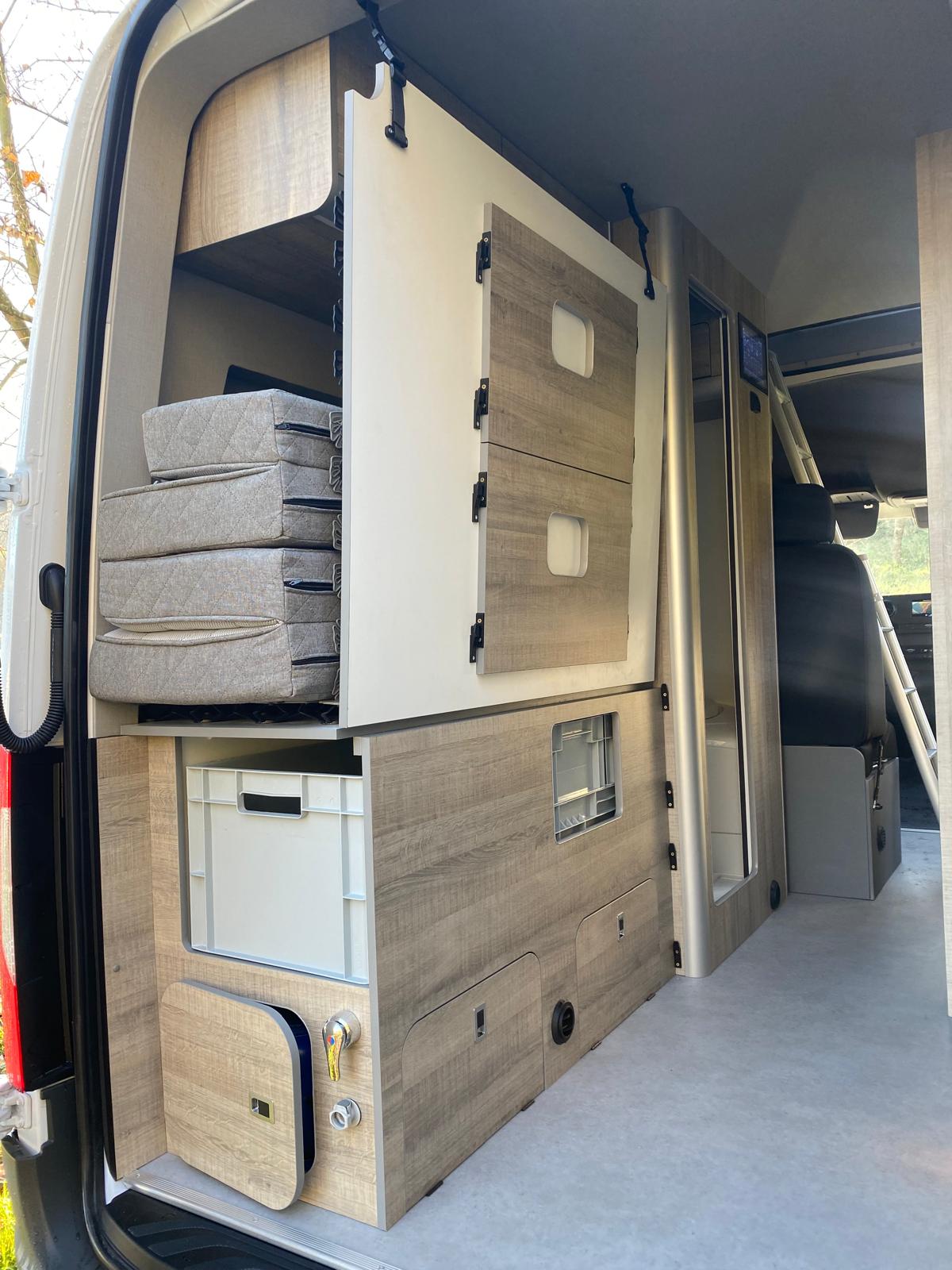

• Ample central free space and a system of boxes to organize the load on the trunk
• Extra external shower

Windows & Skylights

• Integrated Dometic S7P windows with blinds and flyscreen | 1 rear right door 1 dining area 1 sliding door
• Integrated Dometic S7P windows with darkener film | 1 WC
• Dometic MidiHeki 700 x 500 mm skylight

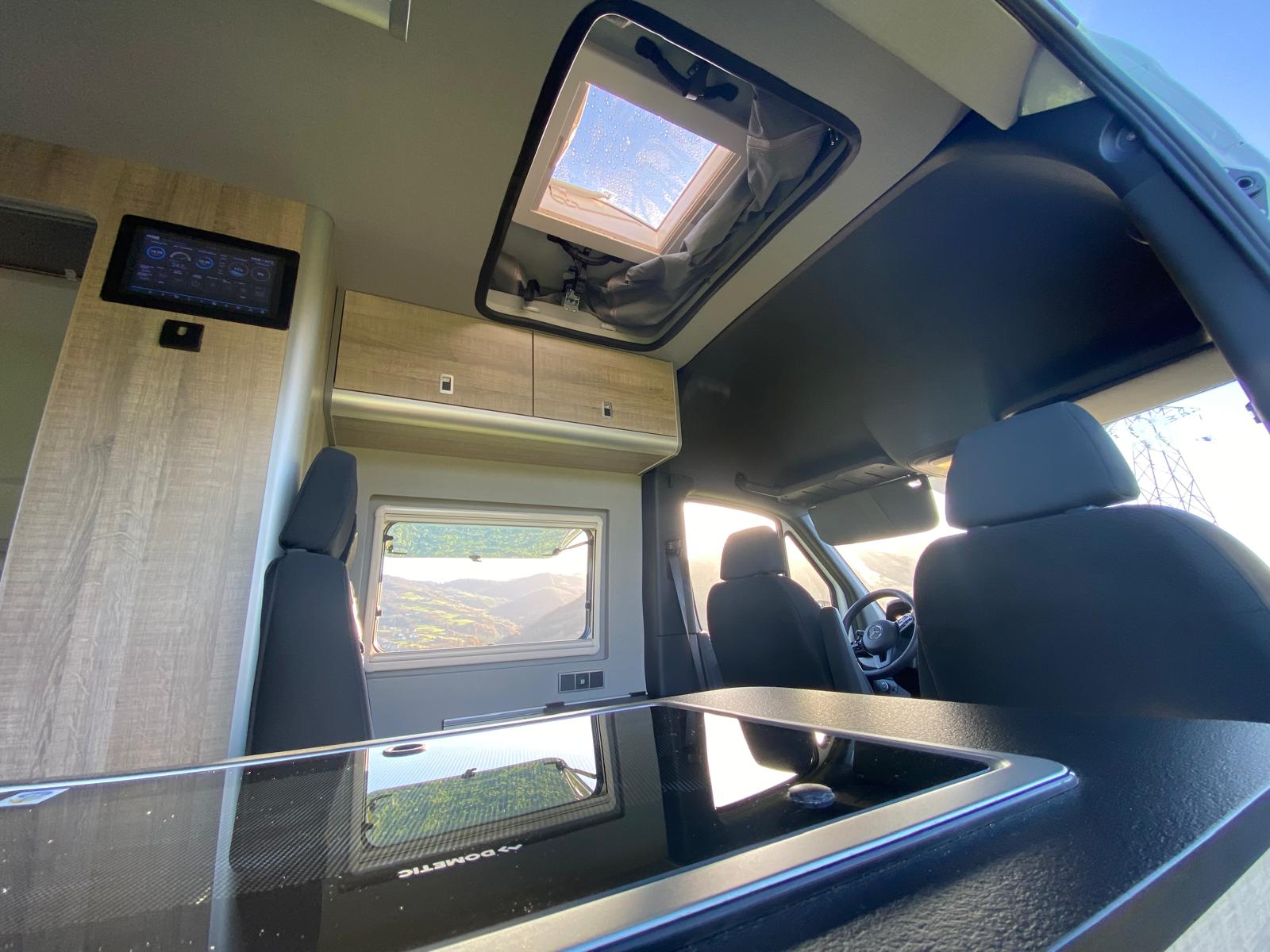

• Dometic MidiHeki 400 x 400 mm | 1 pop-up roof

Technical equipment

• Diesel-operated heating system
• Diesel-operated hot water system
• Dometic RC10.4T compressor fridge 90L
• Domotic system for every electronic component control and data management
• Second auxiliary battery 300Ah in total
• External 230V socket
• Dometic AC/DC 15Ah charger
• 600W pure water inverter
• Internal 104L fresh water tank
• Outside 84L grey water tank
• Solar panel on pop-up roof 150W
• Gas installation with safety box for 2.8 kg gas bottle
